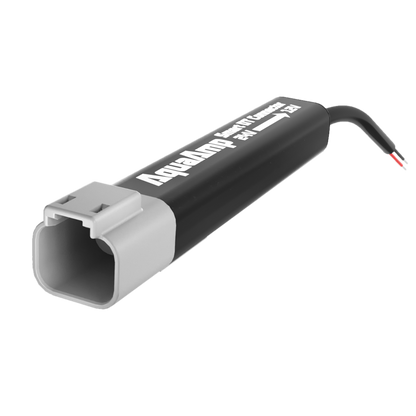

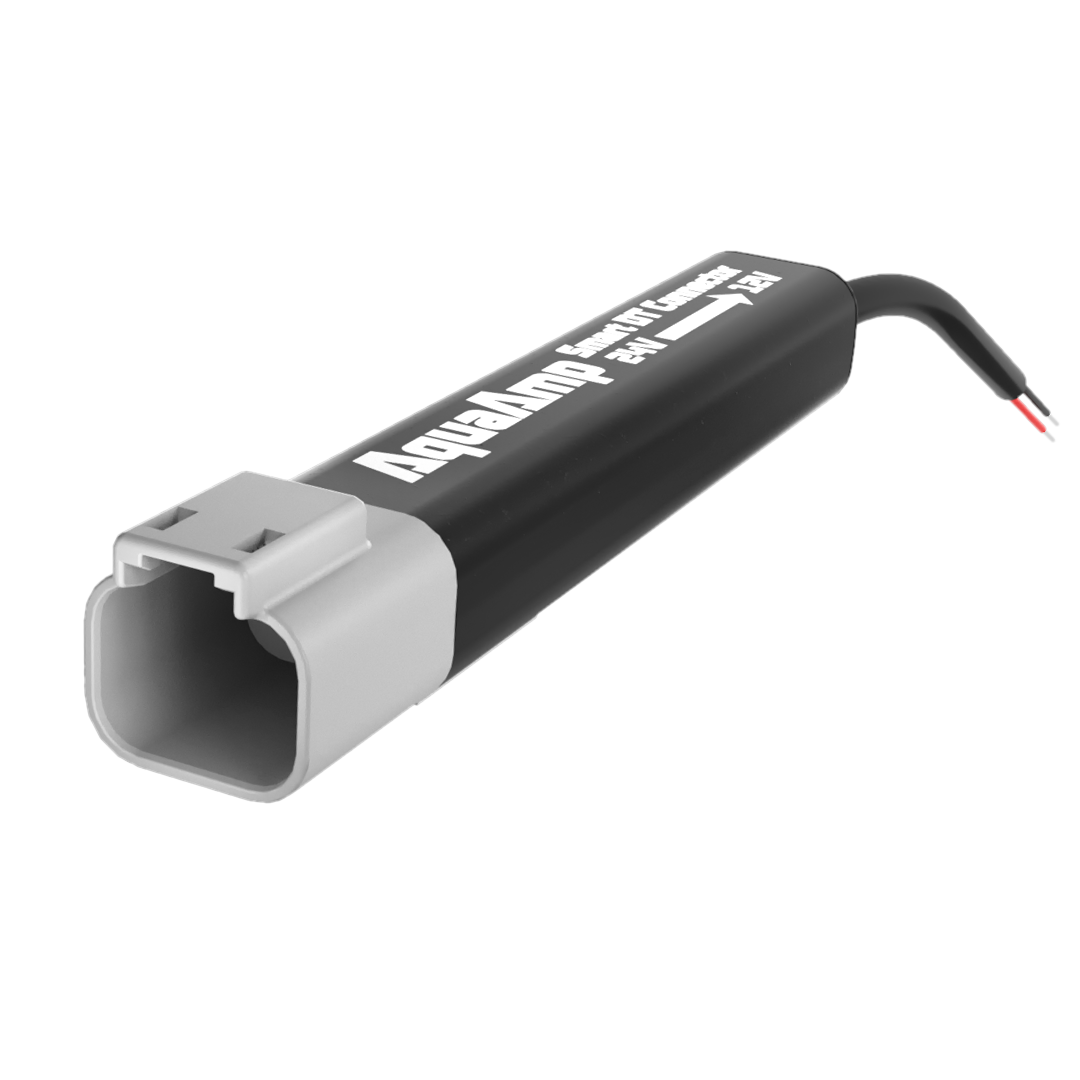

24V-to-12V Smart DT Connector
P1066A-1
OEM marine-grade Deutsch DT-style connector with integrated 24V-to-12V buck converter.
Specs:
- Replaces DT04-2P; Mates with DT06-2S
- IP67 Waterproof (Fully Potted Electronics)
- Up to 30V Input / Regulated 12V Output (3A Max)
- Integrated High-Efficiency DC-DC Converter
- Standard DT-style Connector Housing Cross-Section (fits through existing holes, conduits, and tubing)
- Includes solder seal connectors and heat shrink for secure connection with bare positive and negative wires
- Patent Pending
This DT04-2P replacement allows you to use our entire lineup of wireless phone chargers (or any 12V-only 36W max device) with a 24V wire harness and battery. Female-side connector (DT06-2S or equivalent) is not included. Keep the harness, replace the connector!
Certifications
Documentation

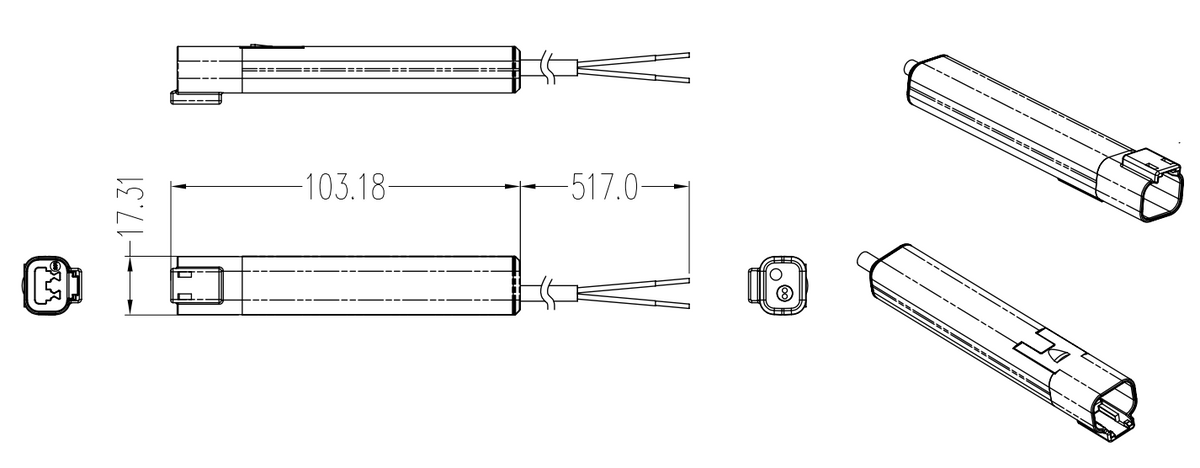

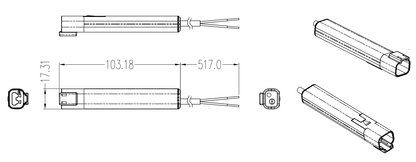

Product Dimensions
3D Model Viewer
Mounting Variations
Pairs well with
24V-to-12V Smart DT Connector
